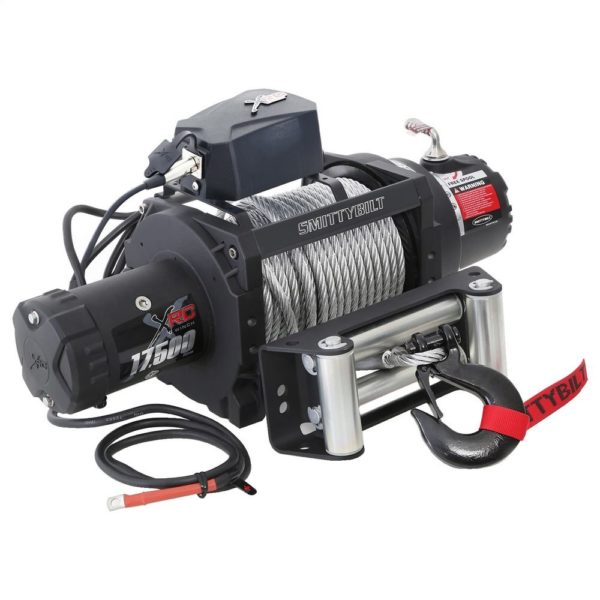

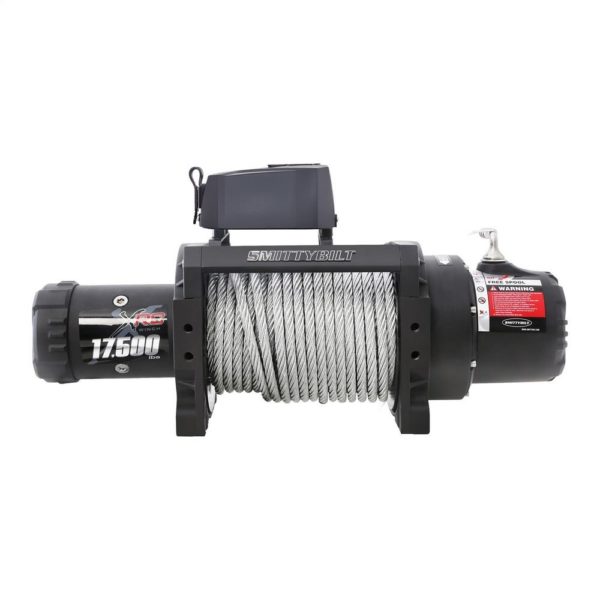

XRC GEN2 17500lb Winch
KWD 349.000
The GEN2 series of Smittybilt X2O and XRC winches have been thoroughly updated with heavy-duty features for enhanced performance. The 6.6HP amphibious motor offers the highest torque in the industry and is connected to a 3-stage Planetary Gear System for increased pulling power and line speed. The X20 GEN2 Series features an integrated wireless remote control for ease of use and maximum versatility.
Out of stock
Description
PRODUCT OVERVIEW
If you’re after a winch with the ultimate in pulling power, look to the X20 COMP Series and XRC COMP Series. Both COMP Series winches feature a Competition Aluminum Fairlead and a state-of-the-art synthetic rope. The top-of-the-line X20 COMP also features Smittybilt’s exclusive Dynamic Braking System which reduces drum temperatures by 66% and makes it perfectly suited to operate all types of synthetic ropes.
- Waterproofing: IP67 Rating

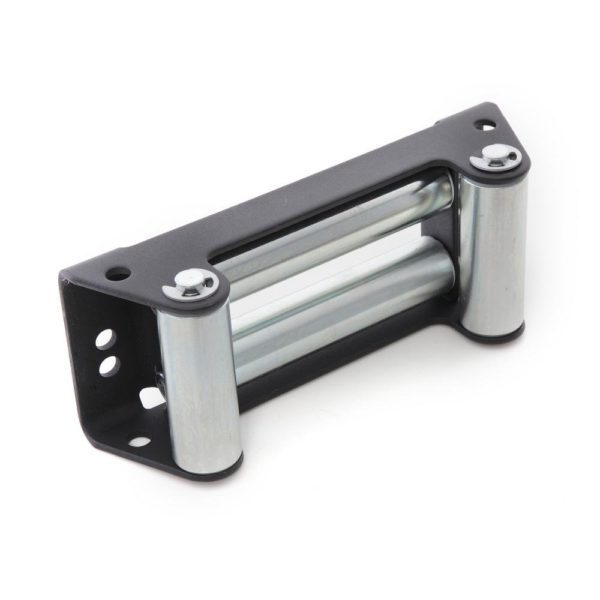

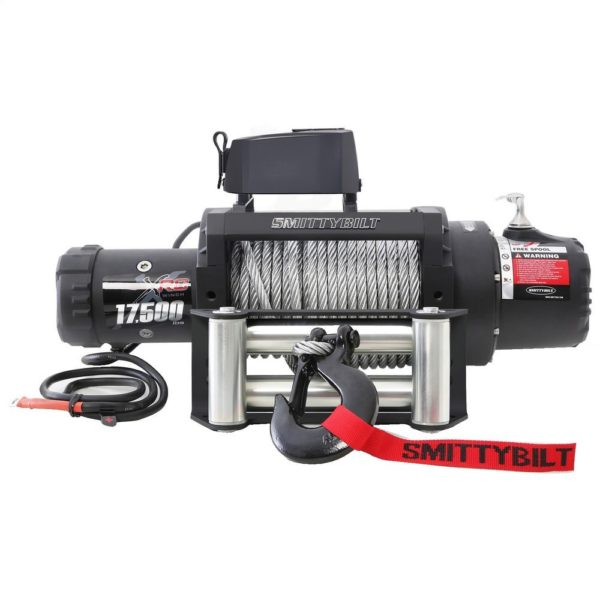

- Fairlead: 4-Way Roller
- Rated line pull = 17,500lbs. (7,954kgs) single-line
- Remote control Included
- Motor: 6.6hp Series Wound Recommended
- Battery: 650CCA Minimum for Winching

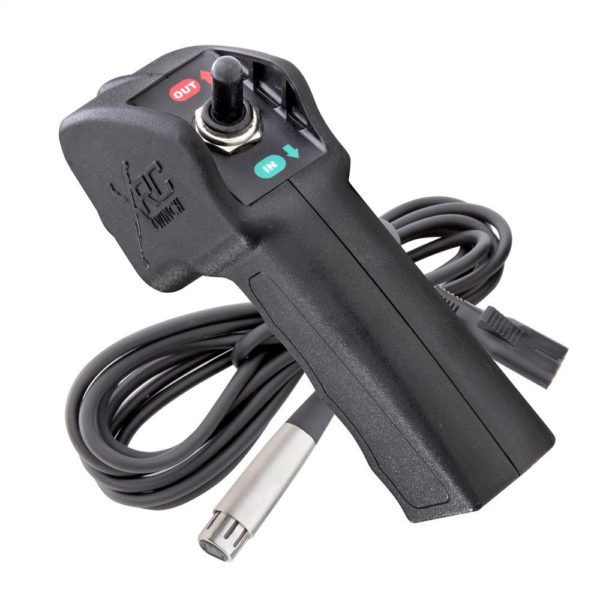

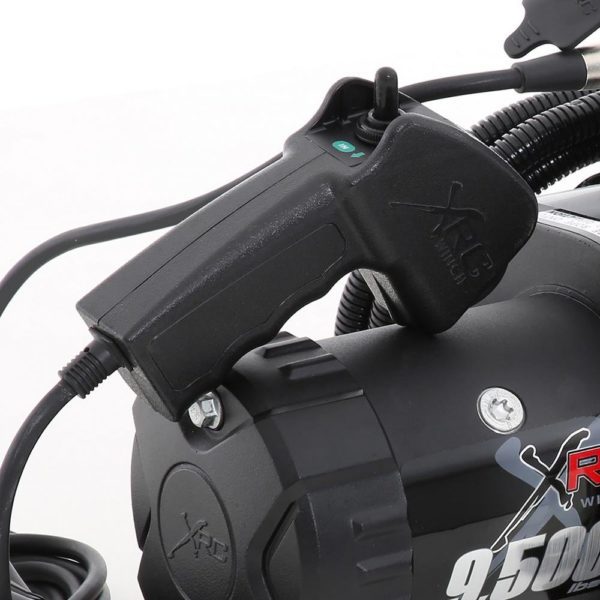

- Control: Remote Switch, 12 ft. (3.7m) lead
- Battery Leads: 25mm, 72 inch(1.83m)
- Gear Train: 3-Stage Planetary
- Finish: Textured black
- Gear Ratio: 330:1
- Weight: 132.2lbs. (60.0Kgs)

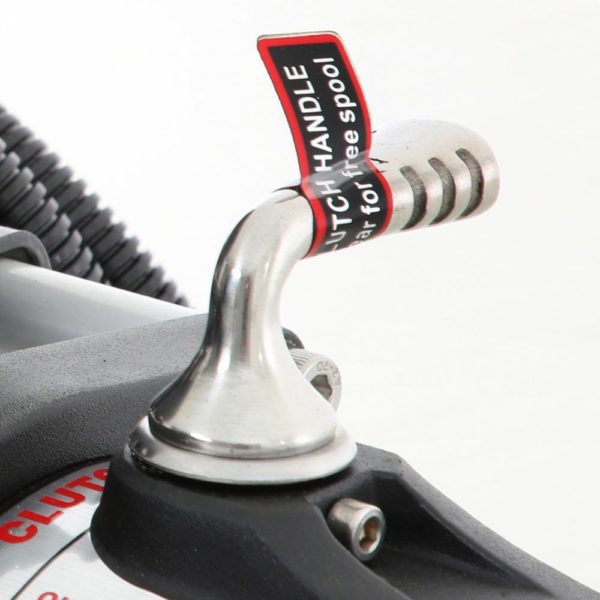

- Clutch: Sliding Ring Gear Mounting
- Bolt Pattern: 10.0 inch x 4.50 inch
- Brake: automatic in-drum
- Overall Dimensions (L x W x H): 24.4 inch x 8.4 inch x 10.7 inch
- Drum Size: Diameter 3.45 inch(88.0mm)

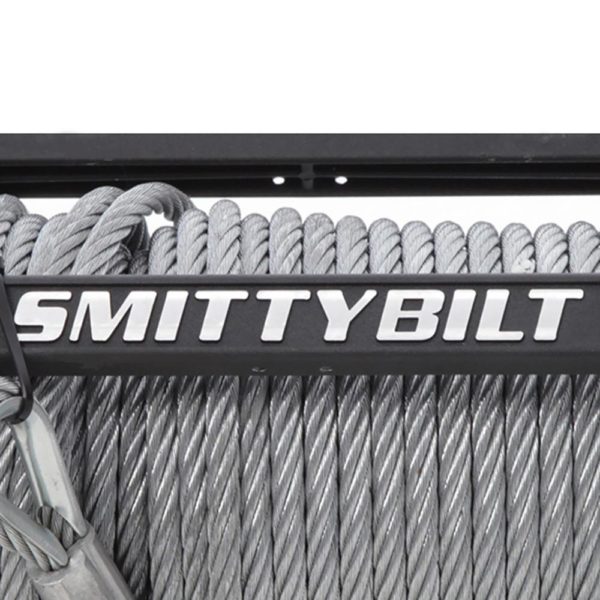

- Cable: 93.5 feet 7/16 inch Diameter
SPECIFICATIONS
Smittybilt | Part Number: S/B97417
Remote: 12 ft. lead
Fairlead: Roller
Line Pull: 17500
Fitment: Universal Fit
Line Type: Cable
